Wiring method of heating cable and power cord power junction box

Wiring method of heating cable and power cord power junction box?The explosion-proof power junction box is used to connect the power cord and the electric heating cable in the explosion-proof area. Generally fixed on the pipeline. After being matched with the electric heating cable, it is suitable for the use of the explosive gas mixture T4 field in the first and second areas of the factory.

power junction box introduction

Wiring method of heating cable and power cord power junction box

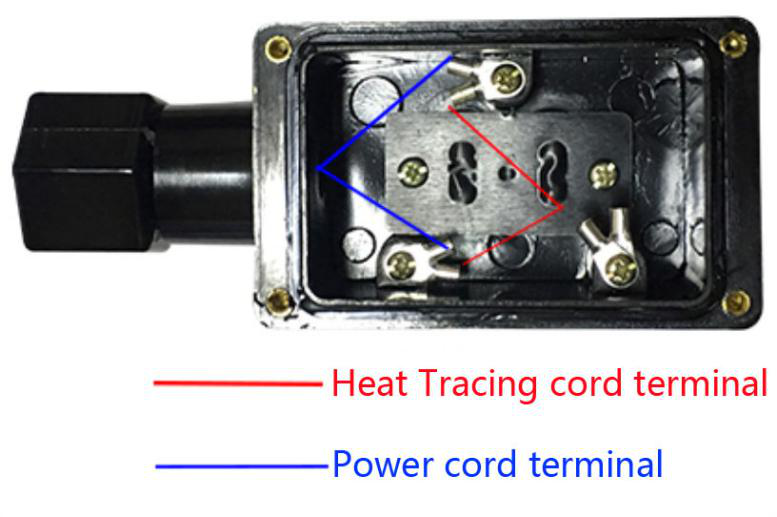

1. Wiring is as shown in the figure on the right. When using outdoors, the incoming cable needs to be protected by a hose to prevent water ingress.

2. It is recommended to apply 704 glue to the connected terminals to prevent arcs and short circuits.

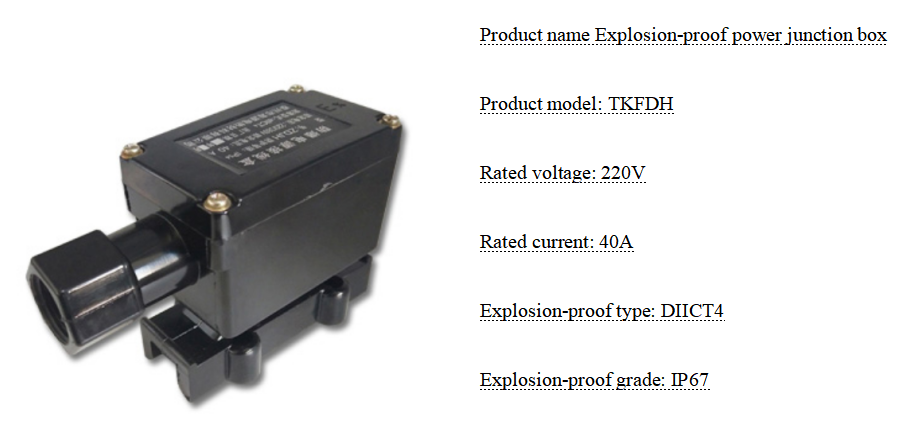

power junction box appearance

Wiring method of heating cable and power cord power junction box
