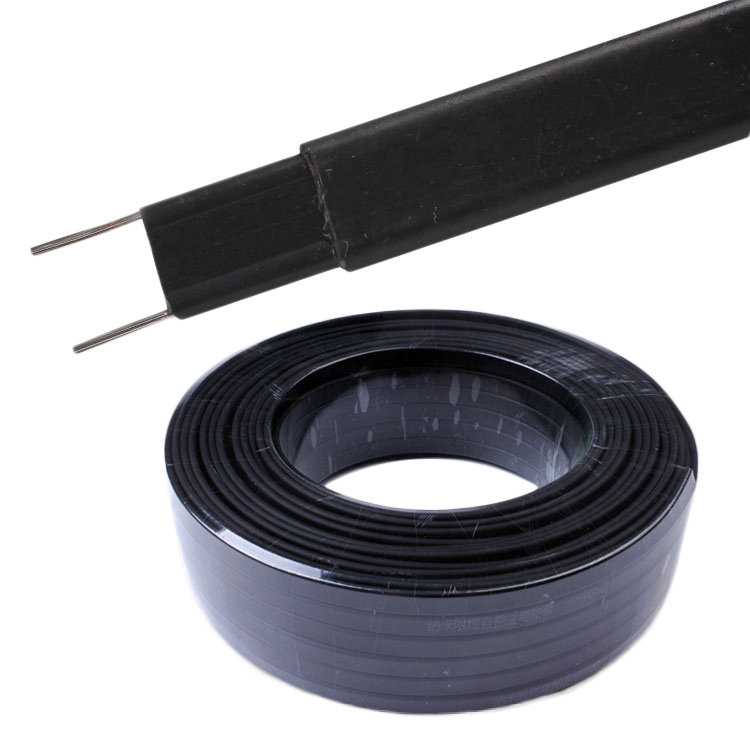

Self regulating heating cable

  • 110v America and Canada use heating cable
  • 110v America and Canada use heating cable
  • 110v America and Canada use heating cable
  • 110v America and Canada use heating cable
110v America and Canada use heating cable110v America and Canada use heating cable110v America and Canada use heating cable110v America and Canada use heating cable

110v America and Canada use heating cable

  • 110v America and Canada use self-limiting temperature heating
  • self regulating heating cable
  • Product description: Because the voltage of the United States and Canada is 110v, the heat tracing cable is 110v. Let’s talk about the most widely used 110v America and Canada use self-limiting temperature heating cable.
  • INQUIRY
The United States and Canada are located in the northern hemisphere, and the winter time is long throughout the year. Domestic water pipes and industrial pipes require heat tracing. Because the voltage of the United States and Canada is 110v, the heat tracing cable is 110v. Let’s talk about the most widely used 110v America and Canada use self-limiting temperature heating cable.

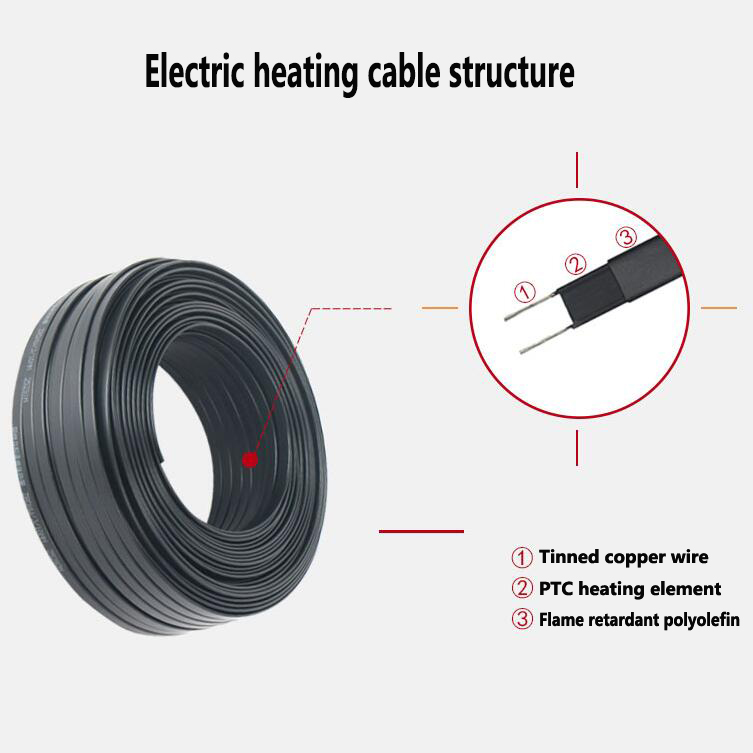

Low temperature type self regulating heating cable structure

110v America and Canada use self-limiting temperature heating cable

pipe heating cable

110v America and Canada use self-limiting temperature heating cable principle
In each heating cable, the number of circuits between the bus bars changes with the influence of temperature. When the temperature around the heating cable becomes cold, the conductive plastic produces micro-molecule contraction to connect the carbon particles to form a circuit, and the current flows through these circuits. Heat the heating tape.
When the temperature rises, the conductive plastic produces micro-molecule expansion, and the carbon particles gradually separate, causing the circuit to be interrupted, the resistance rises, and the heating cable will automatically reduce the power output.
When the temperature becomes cold, the plastic returns to the state of micro-molecular contraction, the carbon particles are connected to form a circuit, and the heating power of the heating tape automatically rises.

110v America and Canada use self-limiting temperature heating cable has the advantages that other heating equipment does not have. The temperature controlled by it will not be too high or too low, because the temperature is automatically adjusted.

heat trace cable

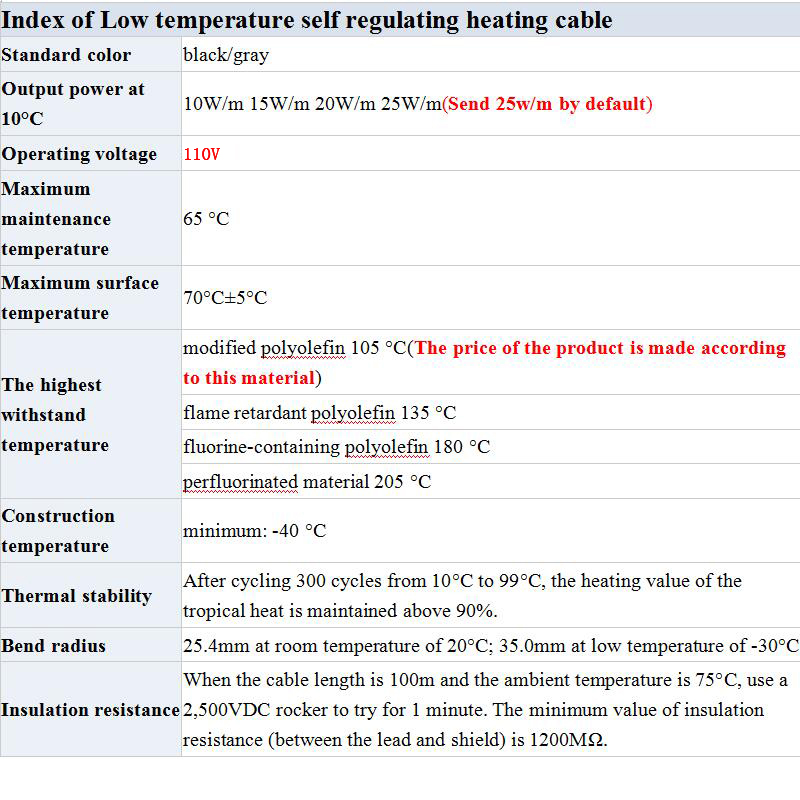

Low temperature type self regulating heating cable Technical index
(1) Standard color: black (customizable);
(2) Temperature range: the highest working temperature is 65℃; the highest exposure temperature is 85℃; the highest temperature is 205℃;
(3) Construction temperature: minimum -40℃;
(4) Thermal stability: After 300 cycles from 10°C to 99°C, the heating value of the cable is maintained above 90%;
(5) Full radius: 25.4mm at 20°C, 50.8mm at -30°C;
(6) Insulation resistance: The insulation resistance between the conductor and the metal sheath/shield should not be less than 500MΩ.
(7) Customizable voltage levels: 12v, 36v, 72v, 110v, 120v, 220v, 240v
Low temperature type self regulating heating cable Temperature characteristics

Low temperature type self regulating heating cable

As an effective pipeline insulation and antifreeze solution, 110v America and Canada use self-limiting temperature heating cable has been widely used in the United States and Canada. The working principle is to dissipate a certain amount of heat through the heating medium, and to supplement the loss of the heated pipe through direct or indirect heat exchange, so as to meet the normal working requirements of heating, heat preservation or antifreeze. If there is any demand, please contact us for inquiries and technical exchanges.
