Installation Accessories

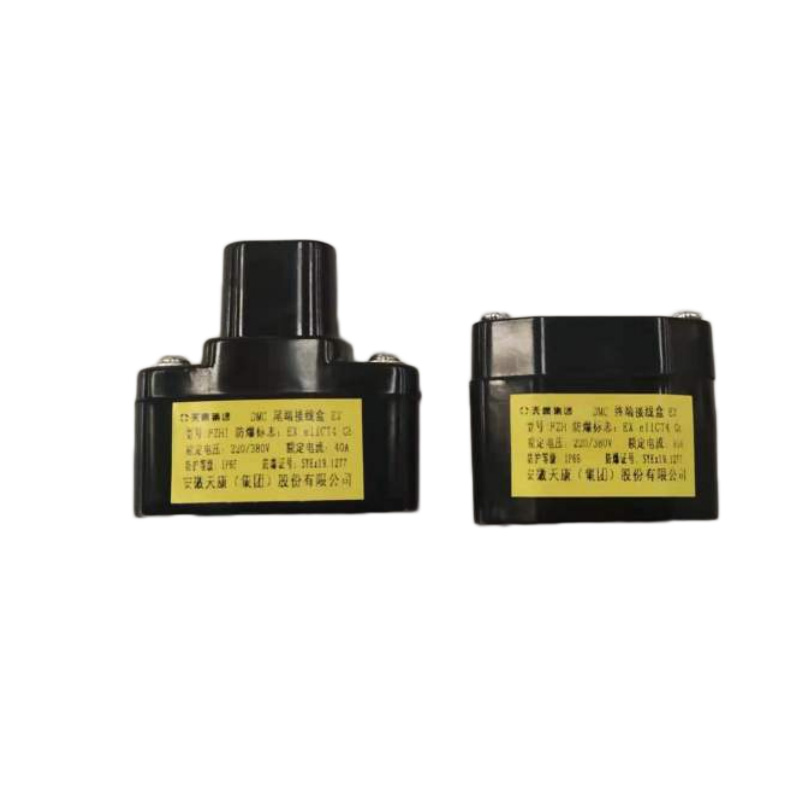

Heating cable End junction box

Heating cable End junction box
Product description: Heat Trace Cable Power Junction Box is used to connect power cables and electric heating cables. It can also be used in explosion-proof areas. The explosion-proof level is ExIICT4, which is suitable f
INQUIRY

heat trace cable End junction box is also called the terminal head, which is used at the end of the electric heating cable to isolate the electric heating cable from the outside world. "Exell CT4" is suitable for all-weather conditions and the use of explosive gas mixtures in the first and second zones of petrochemical plants in Group T4. The structure is tight, and the sealing effect is much better than the ordinary simple tape at the end, and the service life is long, and it is not afraid of bad weather such as rain and snow.

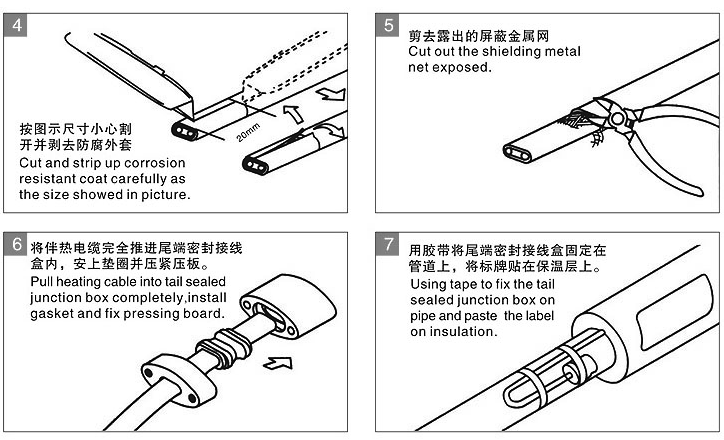

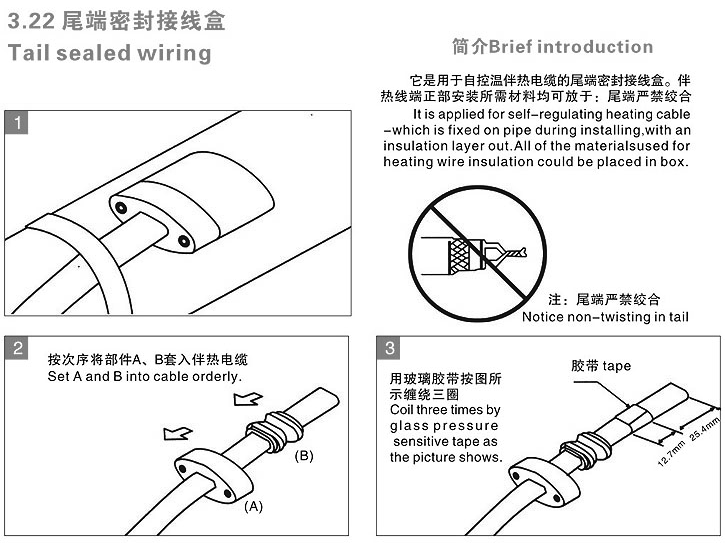

heat trace cable End junction box use and install

When the pipe length is not more than 100 meters and there is no branch pipe, the installation of the electric heating cable is very simple. You only need to use the heat trace cable power junction box and the end junction box, then fix the heating cable, the power junction box and the end junction box, and finally Laying insulation materials, such a simple set of pipeline heat tracing insulation system is completed, and it can play a role when it is powered on,heat trace cable End junction box.
