  • MI heating cable
  • Product description: MI heating cable|MI heat trace cable uses single or multiple alloy heating wires as heat source, high purity, high temperature, fused crystalline magnesium oxide as thermal insulator, seamless continu
  • INQUIRY

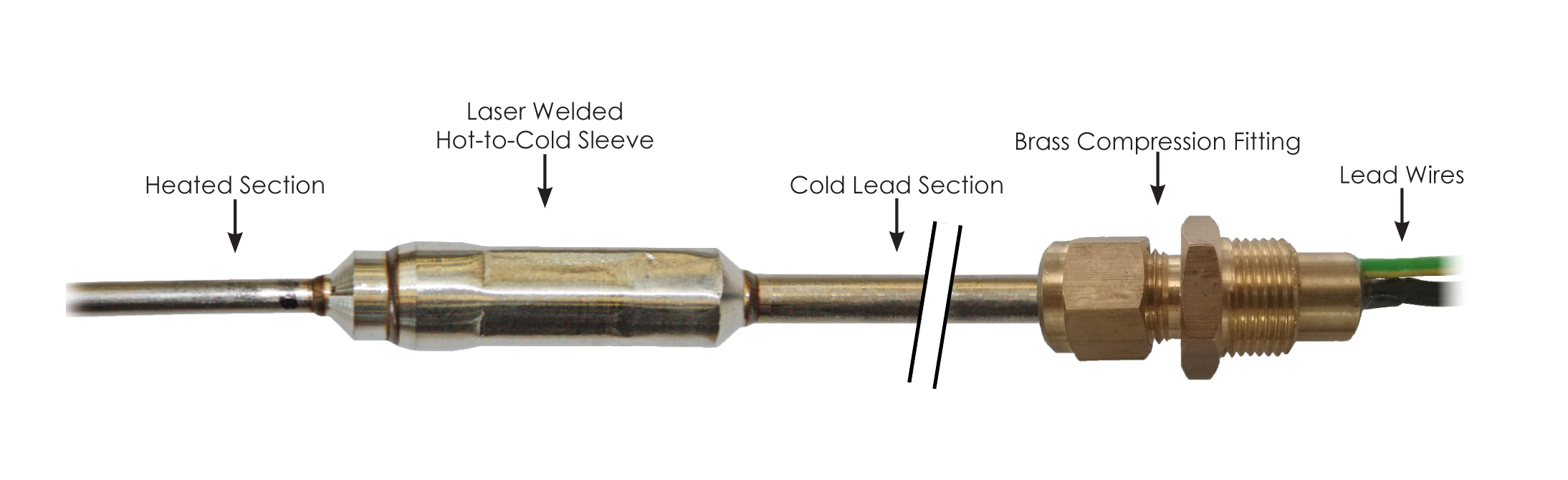

Dual-cores MI heatingcables|Dual conductor MI heating cable must be equipped with a cold end, the cold end contains 500MM non-heating section and the ferrule thread connecting the junction box, G3/4 or G1/2; the material is 304, 321, 316L, 310S, 825 alloy, according to you The length is arbitrarily customized according to the needs. It can meet the needs of high-temperature conditions and high-power heating (up to 350W/m). The maximum operating temperature can reach 650℃; the range of conductor resistance is from 4Ω/km to 2500Ω/km. It has excellent mechanical strength and corrosion resistance.

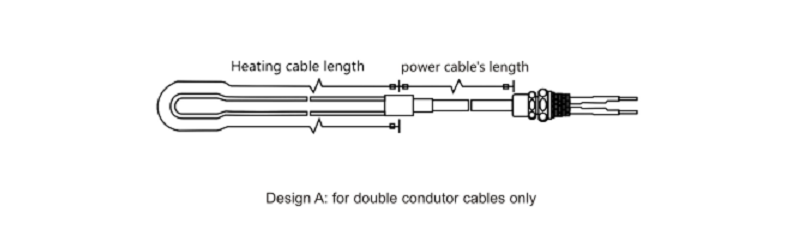

Dual-cores MI heatingcables|Dual conductor MI heating cable structure

heat trace cable

Double conductor high temperature MI mineral insulated heating cable

MI heat trace cable

Voltage: 110V~1100V
Withstand voltage: 2000V
Insulation: 500MΩ
Power: 2~20KW
Maximum length: 1000m
Maximum temperature resistance: 800℃

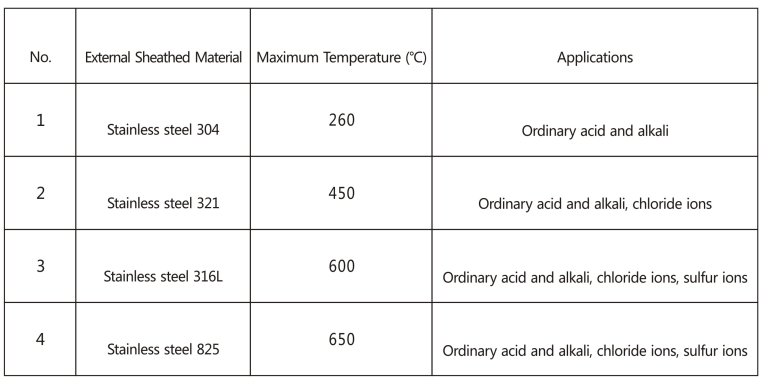

Dual-cores MI heatingcables|Dual conductor MI heating cable Material and heating temperature

Self regulating heating cable

Dual-cores MI heatingcables|Dual conductor MI heating cable Performance characteristics
The stainless steel sheathed mineral insulated heating cable is mainly composed of inorganic materials, which has a long service life, is not easy to age, and has high compressive strength. The outer sheath is made of stainless steel. Therefore, the stainless steel sheathed mineral insulated heating cable has an absolute advantage over other cables.

MI heat trace cable

Dual-cores MI heatingcables,Double heating wire MI heating cable
